AC1010-5010 F.R.L.combination

Short Description : Array

FOB Price : negotiation

Min.Order Quantity : 10PCS

Supply Ability : 10000 Piece/Pieces per Month

Port : NingBo Or ShangHai

Payment Terms : T/T,L/C,PAYPAL

Contact Now

Product Detail

Product Tags

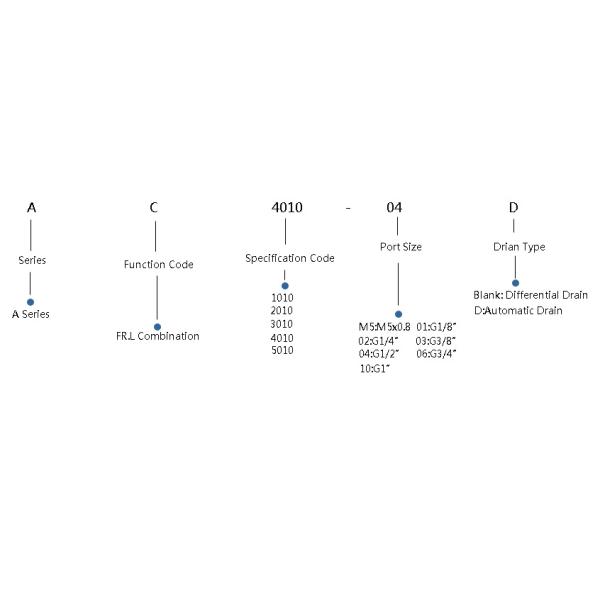

Ordering Code

Specification

Model		AC1010-M5	AC2010-01	AC2010-02	AC3010-02	AC3010-03	AC4010-03	AC4010-04	AC4010-06	AC5010-06	AC5010-10
Rated Flow		90	500	500	1700	1700	3000	3000	3000	4000	4000
Port Size		M5	G1/8″	G1/4″	G1/4″	G3/8″	G3/8″	G1/2″	G3/4″	G3/4″	G1″
Filter Precision		25μm
Highest Working Pressure		1.0MPa
Ensured Pressure Resistance		1.5MPa
Poerating Temp.Range		5~60℃
Range of Adujstable Pressure		0.05~0.7MPa	0.05~0.85MPa
Recommended Oil Use		ISO VG 32
Container Material		Polycarbonate
Protective Cover		Not Available			Available
Drain Function		Differential Drain	Differential Drain,Automatic Drain
Valve Type		With Overflow
Composing	Filter&Regulator	AW1000-M5	AW2000-01	AW2000-02	AW3000-02	AR3000-03	AW4000-03	AW4000-04	AW4000-06	AW5000-06	AW5000-10
	Lubricator	AL1000-M5	AL2000-01	AL2000-02	AL3000-02	AL3000-03	AL4000-03	AL4000-04	AL4000-06	AL5000-06	AL5000-10

Overall Dimension
AC1010-5010 F.R.L.combination

Dimension Sheet

Model	Bore	A	B	C	D	E	F	G	H
AC1010	M5	109.5	50.5	29	58	26	25	25	20
AC2010	G1/8″~G1/4″	164	78	45	90	56.8	30	40	24
AC3010	G1/4″~G3/8″	211	92.5	58.5	117	60.8	41	53	35
AC4010	G3/8″~G1/2″	262	112	77	154	70.5	41	70	40
AC4010-06	G3/4″	267	114	82	164	70.5	50	70	40
AC5010	G3/4″~G1″	338	116	97.5	195	75.5	69.8	90	50
